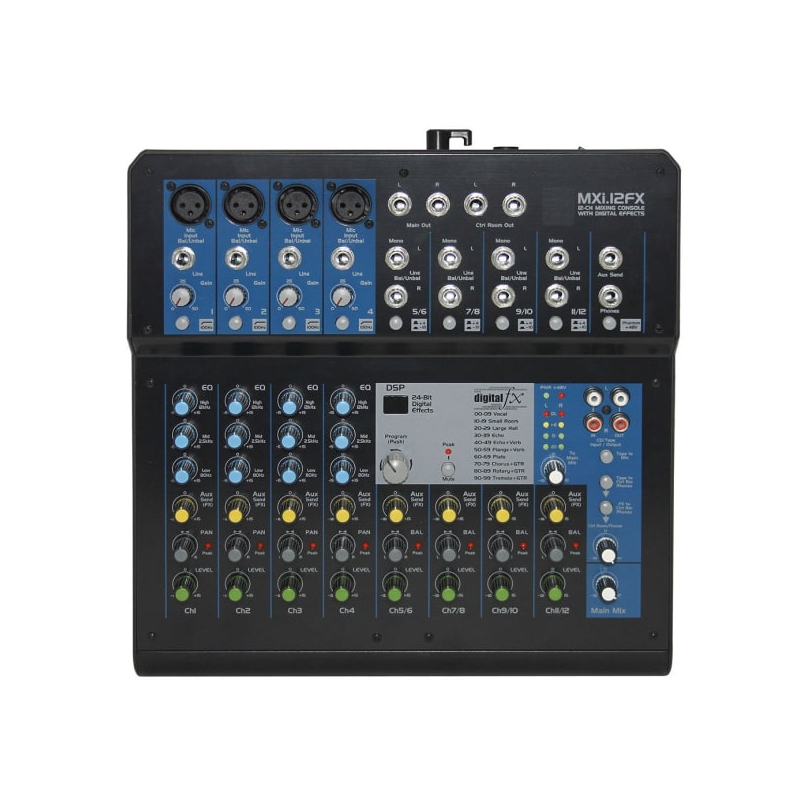

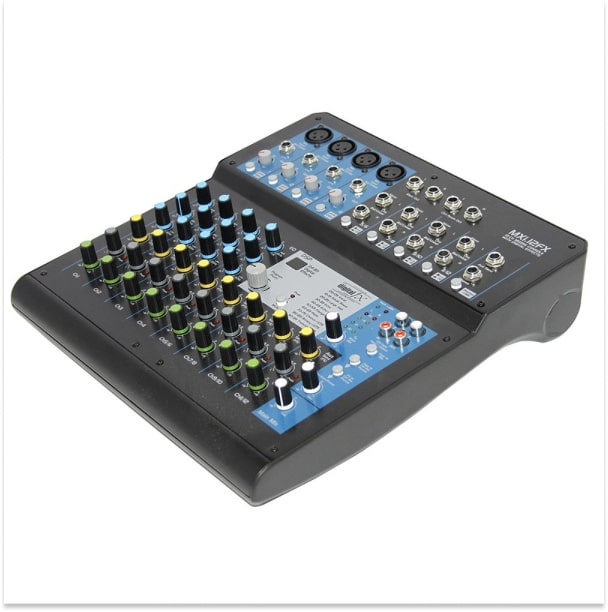

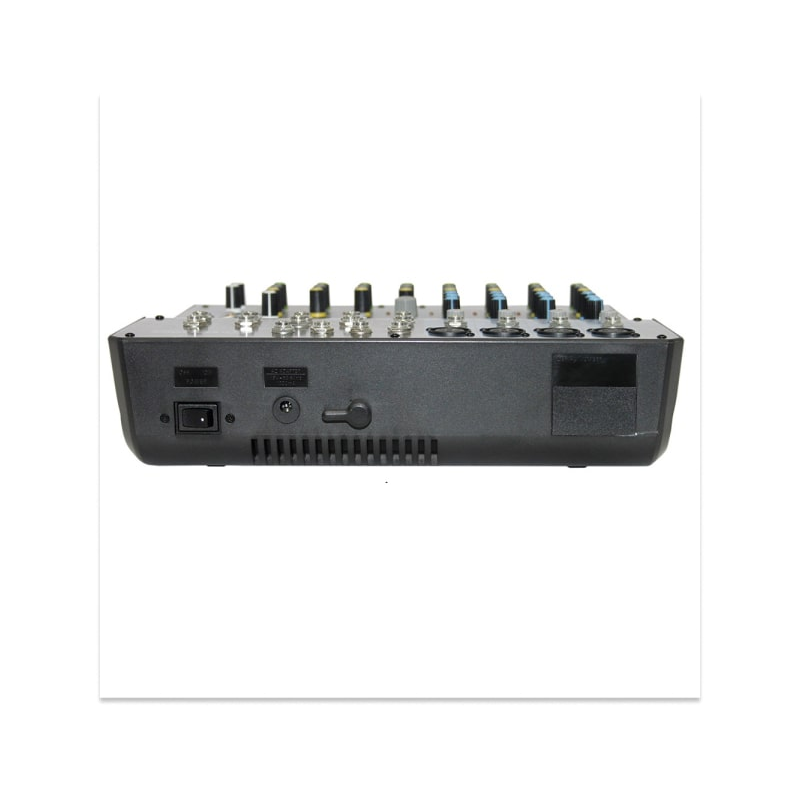

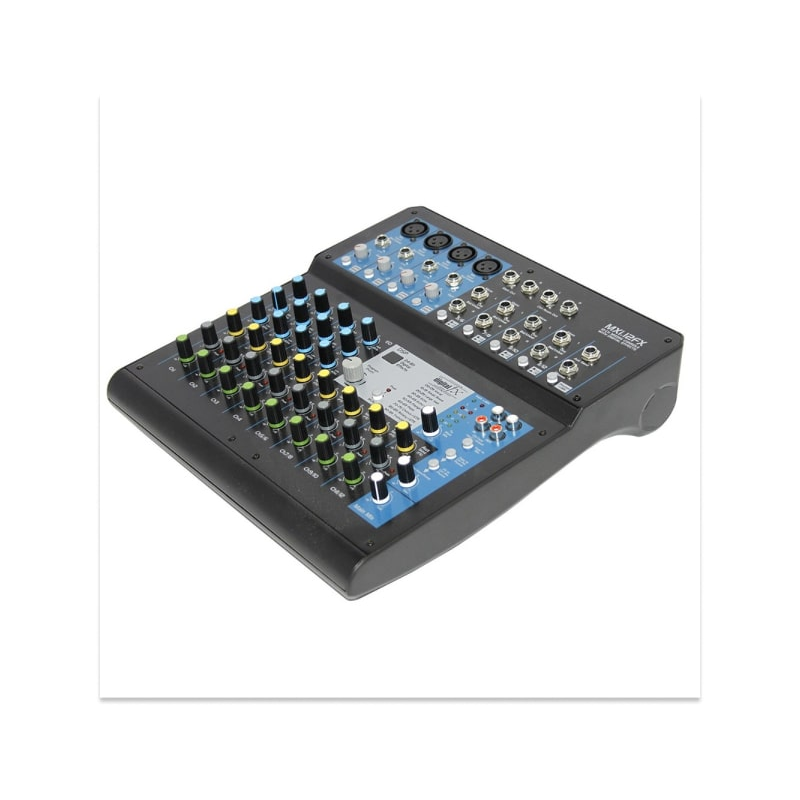

Unistar MXi.12FX 12 Input Mixer , 24-bit Digital FX Processor
Roll over image to zoom in
The Unistar MXi.12FX is a versatile 12-channel professional audio mixer designed for live performances, studio recordings, and multimedia applications. With high-quality preamps, 100 built-in digital effects, adjustable EQ, and phantom power, this mixer delivers crystal-clear audio and precise control for musicians, sound engineers, and content creators.
Key Features:
High-Fidelity Audio:
Frequency response from 20 Hz to 130 kHz (–3 dB) ensures accurate sound reproduction.
Ultra-low distortion: THD+N 0.003% (Mic input to Main output, 20 Hz–20 kHz).
High signal-to-noise ratio: MIC EIN 119 dBu (A-weighted).
Flexible Input & Output:
12 channels (mono and stereo) with balanced line inputs.
Mono channel gain: MIC 0–48 dB, LINE –33 to +15 dB; Stereo channel LINE –8 to +6 dB.
Main, Aux, Control Room, Tape, and Phones outputs with precise gain control.
Phantom power (+48V) for condenser microphones.
Professional EQ & Effects:
Mono channels: High ±15 dB @ 12 kHz, Mid ±12 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz.
100 built-in digital effects including: Vocal, Small Room, Large Hall, Echo, Echo+Reverb, Flange+Reverb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR.
100-position preset selector with mute switch and dual 7-segment displays.
Precise Level Monitoring:
Main mix noise: –106 dBu (fader –8), –95 dBu (channel level –8).
VU meters: Main Left/Right 4-segment with Clip (+20 dBu), +6, 0, –20 dBu.
Peak indicators for channels (+17 dBu), Digital Effect (+11 dBu).
Professional Connectivity:
Microphone input impedance: 2.6 kΩ | Line input: 10 kΩ | Tape input: 22 kΩ
Main outputs: 120 Ω | Control Room & Aux Sends: 120 Ω | Phones: 25 Ω | Tape out: 1 kΩ
The Unistar MXi.12FX offers powerful audio processing, versatile routing, and robust build quality, making it perfect for live gigs, home studios, and professional recording environments.
Specifications:
| Feature | Specification |
|---|---|
| Brand | Unistar |
| Model | MXi.12FX |
| Channels | 12 (Mono & Stereo) |
| Frequency Response (Mic Input → Any Output) | 20 Hz–50 kHz (0, –1 dB), 20 Hz–130 kHz (0, –3 dB) |
| Distortion (THD+N) | 0.003% (Mic input → Main output, 20 Hz–20 kHz) |
| MIC EIN | 119 dBu (A-weighted) |
| Mono Channel Gain | MIC: 0–48 dB, LINE: –33 to +15 dB |
| Stereo Channel Gain | LINE: –8 to +6 dB |
| Crosstalk/Attenuation | Main Mix –106 dBu (fader –8), –95 dBu (channel level –8) |
| Rated Output Level | 0 dBu (Main, Aux, Control Room) |
| Maximum Output Level | +20 dBu |
| Internal Digital Effects | 100 presets: Vocal, Small Room, Large Hall, Echo, Echo+Reverb, Flange+Reverb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR |
| EQ (Mono Channels) | High ±15 dB @ 12 kHz, Mid ±12 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz |
| Peak Indicator | Channels: +17 dBu, Digital Effect (AUX send): +11 dBu |
| VU Meters | Main Left/Right 4-segment: Clip +20 dBu, +6, 0, –20 dBu |
| Input Impedance | Mic: 2.6 kΩ, Line: 10 kΩ, Tape: 22 kΩ |
| Output Impedance | Main: 120 Ω, Control Room/Aux: 120 Ω, Tape: 1 kΩ, Phones: 25 Ω |
| Input HPF | Channels 1–4: 75 Hz, 18 dB/oct |
| Phantom Power | +48V (XLR-3-31 type balanced) |
