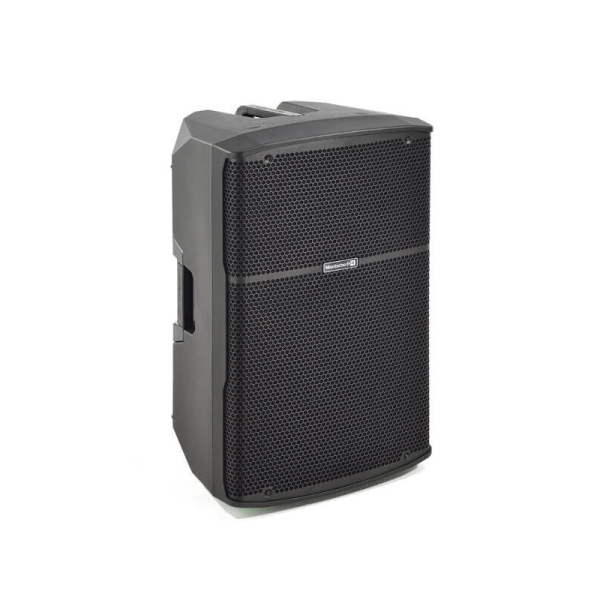

Montarbo B-115 P – Passive Speaker 1200 Watt
B115 is a versatile, portable full range passive speaker suitable for applications in medium to large venues. The bass-reflex cabinet is equipped with a 15” woofer and a 1.35 ”compression driver boosted by a 1300 W Class D amp module. B series’ …
B115 is a versatile, portable full range passive speaker suitable for applications in medium to large venues.
The bass-reflex cabinet is equipped with a 15” woofer and a 1.35 ”compression driver boosted by a 1200 W Class D amp module.
B series’ advanced DSP featuring FIR filters allows a smooth audio performance as well as an impressive dimension/sound pressure level up to 130 dB.
B series speakers feature 3 input channels (Mic/line, Line, Bluetooth) with independent levels. Bluetooth devices can be easily connected thanks to the on-board “PAIR” button.
Moreover, 4 different on-board presets allows users to optimize the audio performance for the application in use.
A clean design integrates 3 handles and rigging points for fixed installation to the lightweight polypropylene cabinet which also allows horizontal stage monitor use,thanks to a 40° inclination of 2 sides of the box (a dedicated preset wedge EQ is selectable on board). The flange for pole fixing on the bottom of the box allows users to choose a 0° or a 7.5° inclination of the cabinet placed on a standard 35 mm tripod
Covers for transport and weather protection are available as accessories for every model in Montarbo B series.
|System type||Two way bass reflex|
|MAX SPL||130 dB|
|Frequency Response (-10dB)||50Hz-20KHz|
|HF||1.35” (34mm) driver|
|LF||15” – 2.5” V.C (65mm)|
|Coverage (H x V)||90° H x 60° V|
|Crossover frequency||1.8 kHz|
|RMS Power||600 W|
|Peak Power||1200 W|
|Advanced Functions||FIR Filters|
|Connectors I/O||CH1: Combo CH2: XLR-F + jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-M|
|Controls||Ch. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selection|
|Dimensions||430 x 725 x 405 mm (16.9” x 28.5” x 15.9”)|
|Weight||21.6 kg (47.62 lb)|
