Description
Simplifies Your Setup

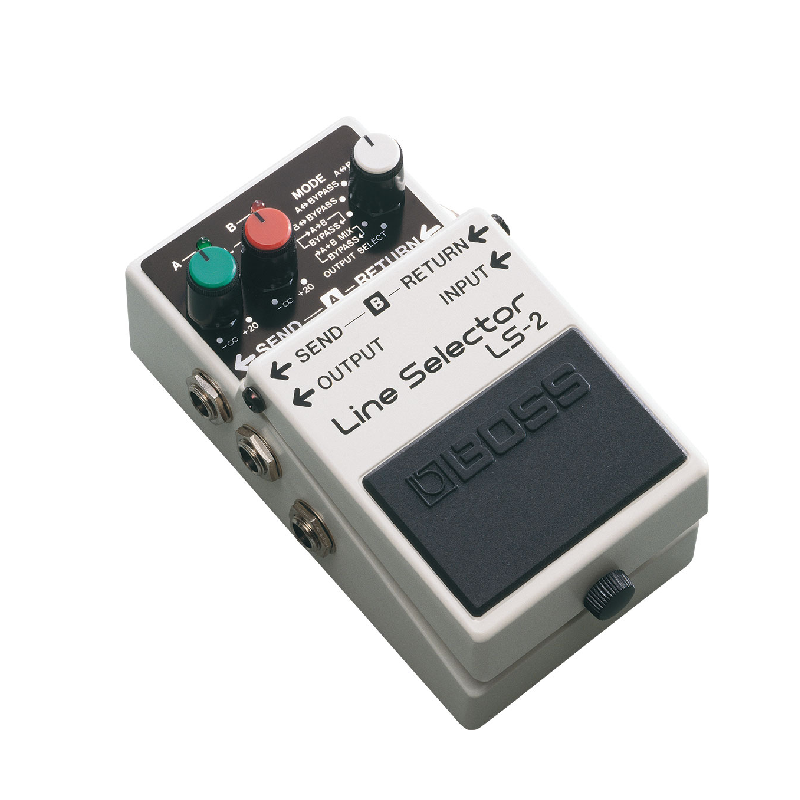

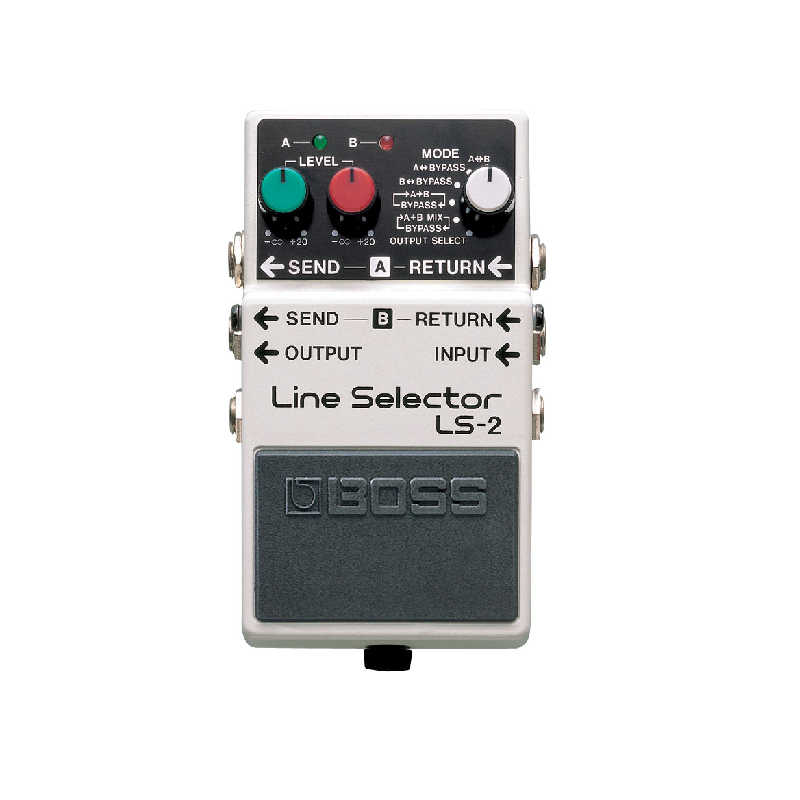

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohms
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
MODE selector switch
LEVEL knobs A/B
Pedal switch
Indicator
Line indicator A/B (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
SEND jacks A/B: 1/4-inch phone type
RETURN jacks A/B: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN/OUT jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
30 mA
Expected battery life under continuous use
Carbon: Approx. 14.5 hours
Alkaline: Approx. 29.5 hours
* These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Parallel DC Cord: PCS-20A
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
430 g
1 lb
