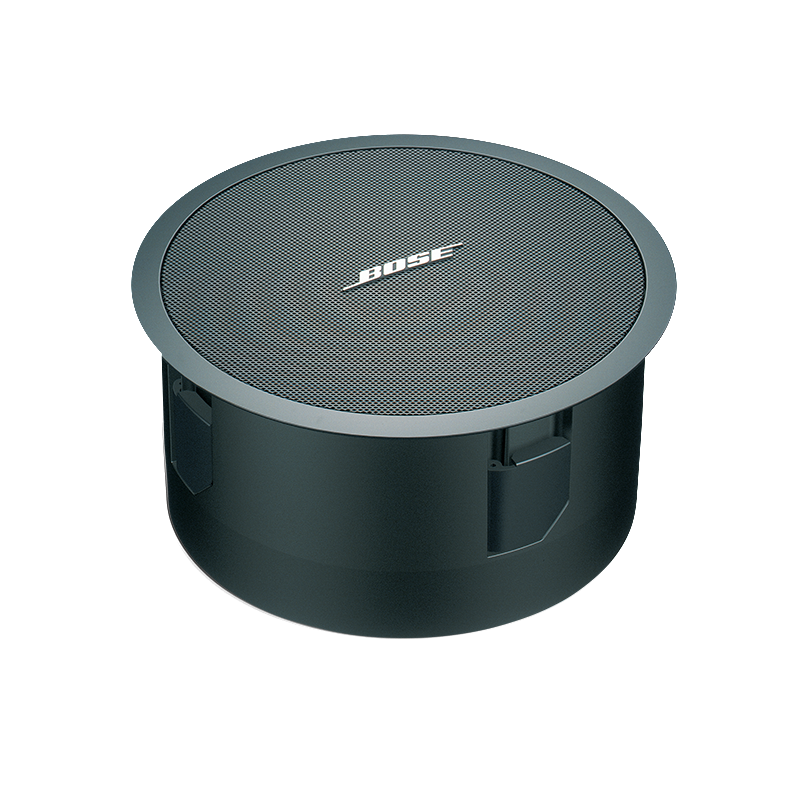

Bose FreeSpace 3 Series II bass module

Bose FreeSpace 3 Series II bass module

1,699.00 د.إ Inc vat
Add to wishlist Compare
Request Quote
Category: Brand:

Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion. For indoor applications only.

Description

  • Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications
  • Speaker technology filters out audible distortion to deliver non-localized bass
  • Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired
  • Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
  • Plenum rated for use in air handling spaces (with optional plenum cover)
  • Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille
  • Colors
  • Black, white
  • Enclosure Material
  • PC/ABS
  • Environmental
  • Indoor only
  • Grille
  • Expanded metal
  • Suspension/Mounting
  • (4) mounting arms, (3) suspension/safety cable attachment points
  • Product Dimensions (H×W×D)
  • 15.4 in × 7.4 in (391 mm ×189 mm), loudspeaker diameter × depth / 14.3 in (362 mm), ceiling hole diameter
  • Net Weight
  • 14.0 lb (6.4 kg)
  • Shipping Weight
  • 20.0 lb (9.1 kg)
PERFORMANCE
  • Frequency Range (-10 dB)
  • 40 Hz – 315 Hz
  • Coverage, Horizontal
  • Omnidirectional below 200 Hz
  • Calculated Maximum SPL @ 1 m
  • Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak
  • Nominal Impedance
  • 6 Ω mono direct (transformer bypassed)
  • Power Handling, long-term continuous
  • 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
  • Power Handling, Peak
  • 70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
  • Recommended Signal Processing
  • Recommended
  • Sensitivity (SPL/1 W at 1 m)
  • Per channel: 76 dB / Mono: 79 dB
  • Transformer Taps, 100V
  • 25 W, 50 W, 100 W, 200 W
  • Transformer Taps, 70V
  • 25 W, 50 W, 100 W, 200 W
  • Coverage, Vertical
  • Omnidirectional below 200 Hz
TRANSDUCERS
  • Driver Protection
  • Recommended high-pass filter 40 Hz high-pass filter
  • Low-Frequency
  • 5.25 in (133 mm) dual-voice-coil low-frequency driver
