Next M8 – Passive Column Array
Lowest price in the last 30 days: 2,299.00 د.إ
Description
Overview
- 100V – 80W Transformer (optional)
- Vocal and Music Selector
- High intelligibility at high SPL
- Tuned Dipolar Technology
- Variable Beam Shaping
- Type: Tuned Dipolar, Variable Beam Straight Line Array
- Frequency Response (-10dB): 135Hz – 20kHz
- Eq. Optimization Mode: Vocal or Music (User Selectable)
- Horizontal Coverage: 90º (+/-20º 1.5-5kHz)
- Vertical Coverage: 25º(+/-10º 1.2-16kHz) / (+10º/-5º 1.5-16kHz)
These speaker arrays have been developed in order to offer the highest intelligibility at high SPL and wider frequency response while providing constant beam-width over a user selectable vertical coverage. This accurate beam control extends up to 10kHz, well beyond the benchmark of 4kHz of traditional single-driver loudspeakers.
To better control the lower frequencies, the Tuned Dipolar Technology was developed by NEXT-proaudio engineers to provide much more consistent low frequency pattern control than other similar size systems.
A user selectable Music / Vocal mode switch is incorporated to allow quick and easy system optimization. Music mode provides a flat, balanced frequency response, while Vocal mode adds a mid-range presence for enhanced speech intelligibility.
NEXT MATRIX column arrays are able to focus the acoustical energy where it is needed, the listening area, leading to significant improvements to speech intelligibility and musical clarity even in critical acoustic environments.
For even greater versatility, the vertical dispersion pattern can be switched for Wide or Narrow coverage. Small conventional column loudspeakers arrays provide no significant vertical directivity control at lower frequencies due to their physical size.
To better control the lower frequencies, the Tuned Dipolar Technology was developed to provide more consistent low frequency pattern control than other similar size systems. This can be useful in reducing the stimulation of resonant room modes at low frequencies.
The heart of the NEXT MATRIX column arrays is the internal processing board. This proprietary special circuitry takes care of the array optimization and allows the user to easily adjust the system behavior to meet the application requirements.
For an architectural integrated installation, a 16mm cavity in the back of the speaker provides ample space for hidden speaker wiring, even when the speaker is mounted flat against a wall.
Removable Input screw connector offers reliable, easier and more efficient wiring. A variety of accessories is available to provide linking, hanging, and wall or pole mounting.
For high-impedance (100V) operation, an optional multi tap transformer is available.
Related products
Next PFA15p – Passive Full-Range Speaker
- 60 degrees monitor angle
- User Rotatable, Constant Directivity HF horn
- 15" LF speaker and 1" HF compression driver
- Passive Speaker/Monitor
- Nominal Impedance: 8Ω
- Rated Power: 600W
- Dispersion (HxV): 90° x 60° user rotatable
- Maximum SPL: 126dB/132dB (Full-Space)
- Freq. Resp. (-6dB): 54Hz - 18.000Hz
Next PFA12p – Passive Full-Range Speaker
- 60 degrees monitor angle
- User Rotatable, Constant Directivity HF horn
- 12" LF speaker and 1" HF compression driver
- Passive 2-Way Speaker/Monitor
- Nominal Impedance: 8Ω
- Rated Power: 500W
- Dispersion (HxV): 90° x 60° user rotatable
- Maximum SPL: 123dB/129dB (Full-Space)
- Freq. Resp. (-6dB): 58Hz - 18.000Hz
Next PFA8p – Passive Full-Range Speaker

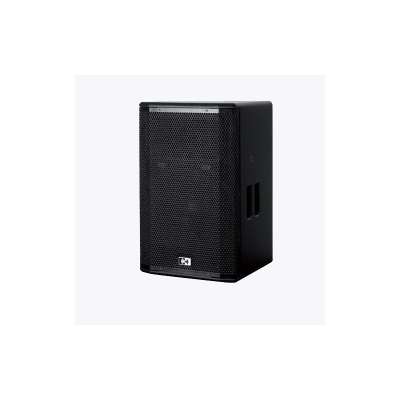

Montarbo Passive speaker 12″ (400W) FIRE12 LP
