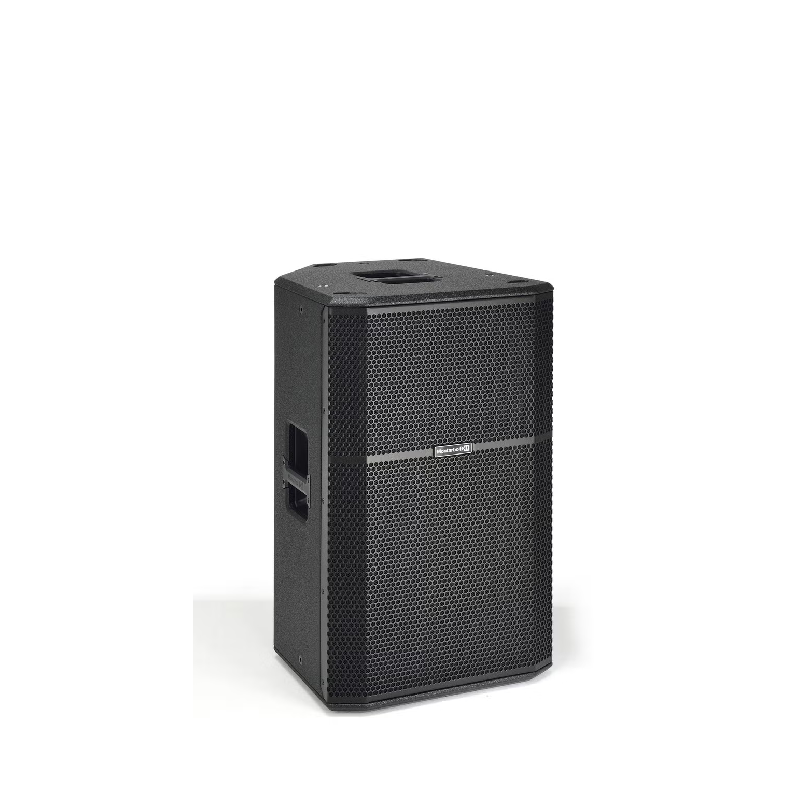

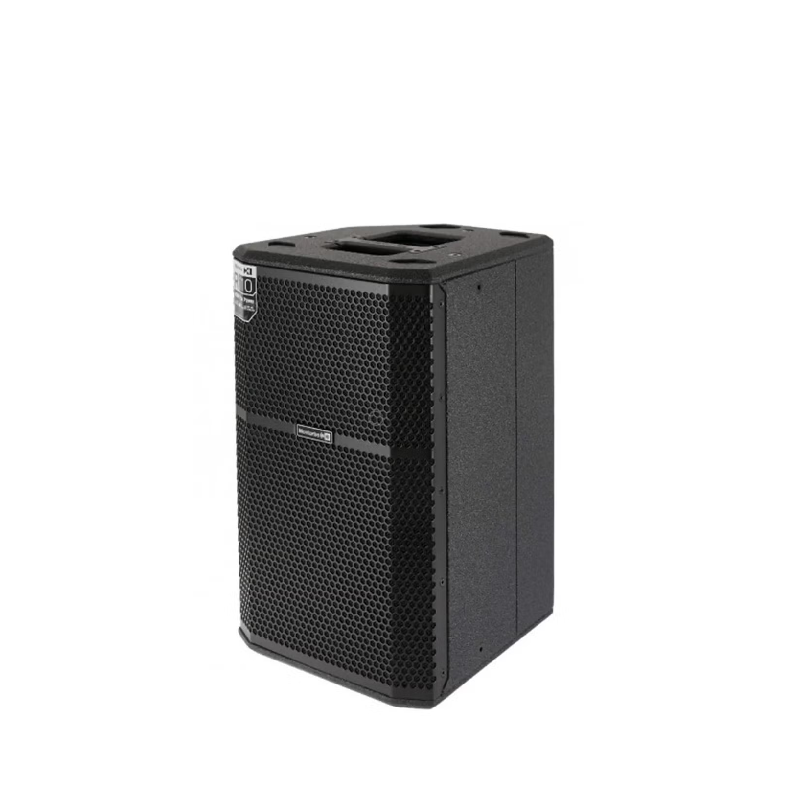

R110 is a wooden active speaker, 10″ with FIR Filter and 127 dB SPL
The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.
4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.
The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.
TECHNICAL SPECIFICATIONS
Acoustical Data
| Speaker Type | 2-way Active bass reflex |
| Frequency Response [-10 dB] | 61 Hz – 20 kHz |
| Max SPL | 127 dB |
| HF | 1.35″ driver |
| LF | 10″ – 2″ VC |
| Dispersion | 90° H x 70° V |
| Crossover Frequency | 1.78 kHz |
Amplifier
| Amp Class | D + A/B |
| RMS Power | 200 W |
| Peak power | 400 W |
| Cooling | Fan |
DSP
| Advanced Functions | FIR Filters |
| DSP | 28/56 Bit |
| AD/DA Converter | 24 bit, 48 kHz |
| Controls | Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output |
| Connectors | CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M |
Enclosure
| Dimensions | 304 x 505 x 305 mm [11.9” x 19.9” x 14,4”] |
| Weight | 12.7 kg [28 lb] |
| Cabinet | Multilayer wood with polyurea finish |
