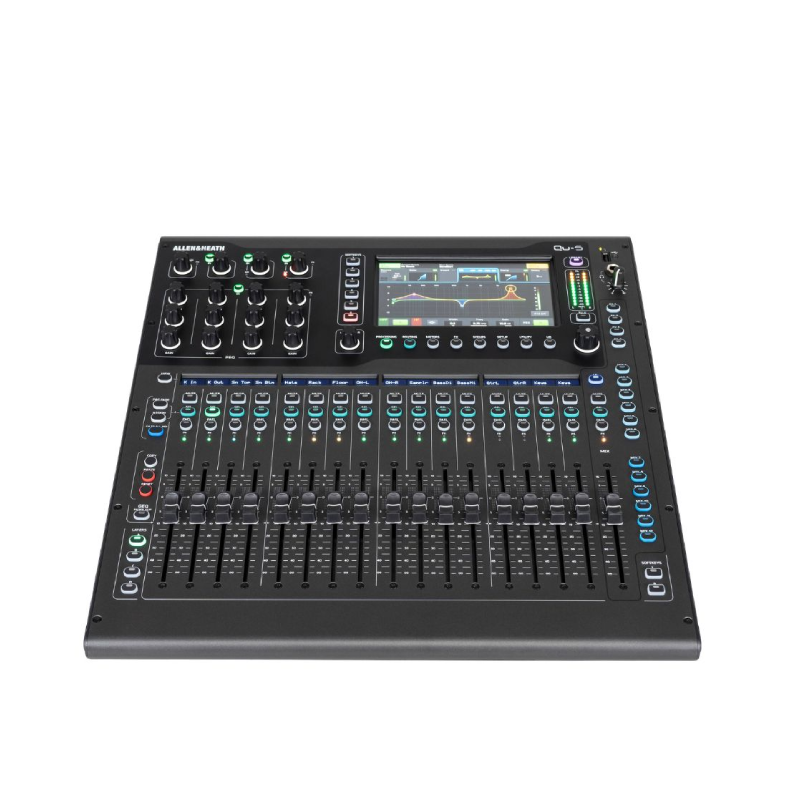

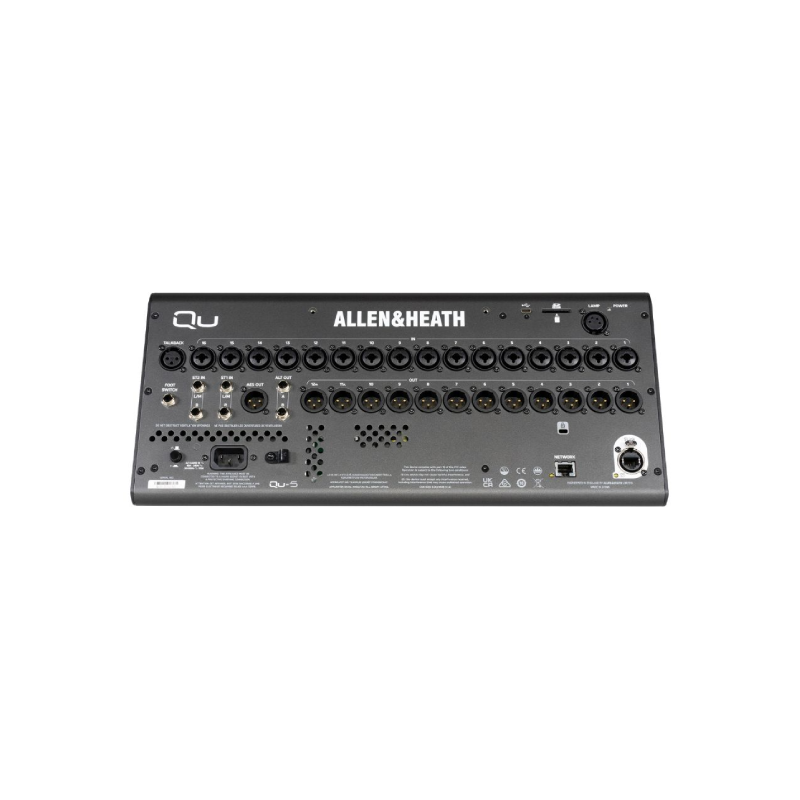

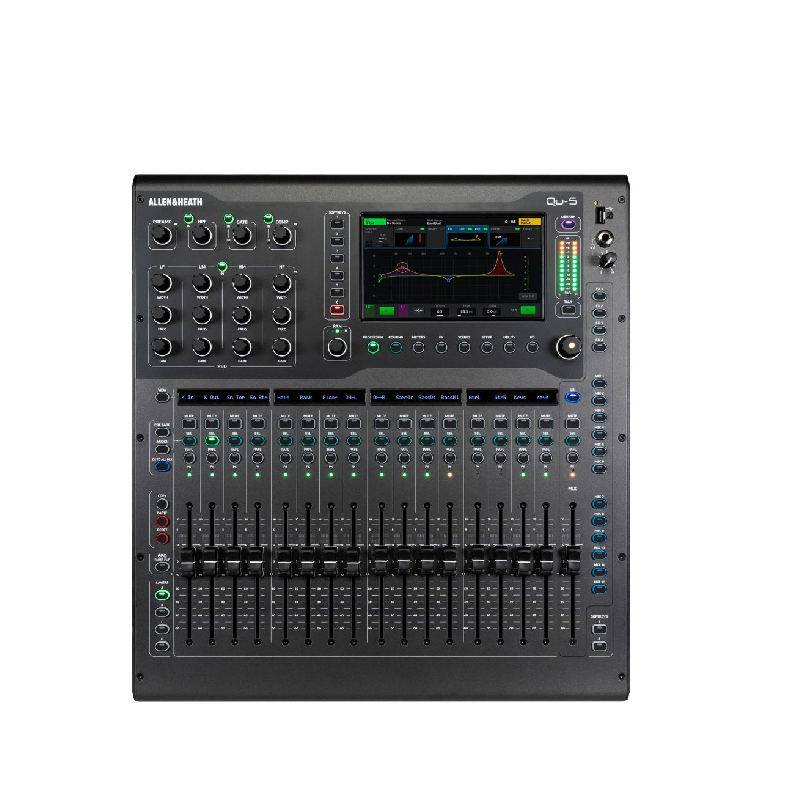

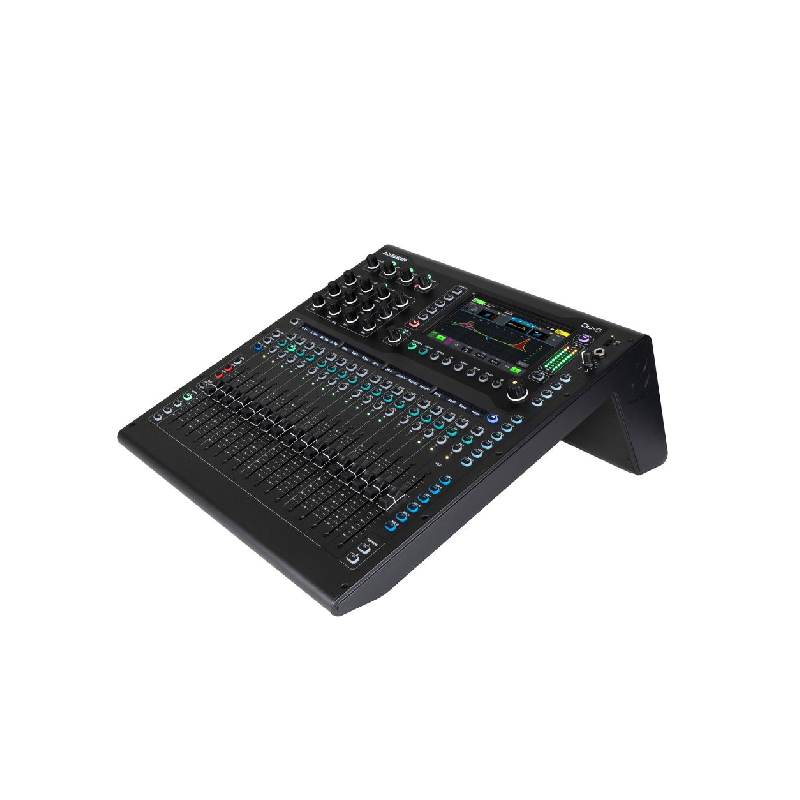

Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer
Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer - Image 2
Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer - Image 3
Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer - Image 4
Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer - Image 5

Allen & Heath Qu-5 38in/24out 96kHz Digital Mixer

9,099.00 د.إ Inc vat
Add to wishlist Compare
Request Quote
Category: Brand:
  • 16 Microphone Preamps
  • 7″ Capacitive Touchscreen
  • 96 kHz FPGA Processing
  • Six Stereo FX Engines with Returns
  • 32×32 USB Audio Interface
  • AES Output
  • 12 XLR Outputs
  • Eight Soft Keys
  • SLink Port for Remote Audio & Expansion

Description

  • The Allen & Heath Qu-5 is a compact digital mixer built around a 96 kHz XCVI core, delivering pristine audio with upgraded preamps and high-performance converters. Its redesigned interface features motorised faders, enhanced channel displays, and a fast 7″ touchscreen for smooth, intuitive mixing. Workflow is improved with four customisable layers, flexible routing, and more SoftKeys for quick control. Recording is versatile thanks to a 32×32 USB-C interface, SD-card multitrack capture, and USB-A stereo playback. The SLink port enables full Everything I/O integration and up to 128×128 channels of 96 kHz audio with other A&H systems. DEEP-ready processing, Gain and Feedback Assistants, AMM, and remote-control apps make it a powerful solution for live sound, broadcast, and installations.

Advanced Control & Workflow

Equipped with a 7” capacitive touchscreen, 17 motorized faders, and 4 customizable channel layers, the mixer streamlines operation with assignable SoftKeys, intuitive channel displays, and flexible routing options, enabling fast, walk-up-and-mix usability for engineers of all levels.

High-Performance Audio

The Qu-5 features updated microphone preamps and 96kHz AD/DA converters that deliver pristine, detailed sound with full clarity, preserving every nuance of the source and ensuring professional-grade audio for live and studio applications.



  • Max I/O Capacity: 36x Input / 12x Output

  • Number of Analog Input Channels: 18 (16 Mono / 2 Stereo)

  • Number of Mic Preamps: 16

  • Number of Analog Output Channels: 12

  • Mix Routing:

    6x Mono Aux Send

    6x Stereo Aux Send

  • Groups: 6x Subgroup
  • Display: 7″ Touchscreen
  • Faders & Level Adjustment: 17x 3.9″ / 100 mm Fader
  • Meters:

    Main Meter: 2x 12-Segment LED

    Channel Meter: Single LED

  • Gain/Trim Range: +60 dB
  • Input Pad: -20 dB (Mic/Line Inputs)
  • Input Polarity : Normal/Reverse
  • Dynamic Processing:

    Input Channels: Compressor, Gate

    Master: Compressor, Limiter

  • EQ: Input Channels: 4-Band Parametric
  • EQ Parameters: Notch/Peak
  • Graphic EQ: Yes
  • Filters: High-Pass
  • Solo/Mute: Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
  • Built-In Effects:

    4x Reverb

    Stereo Delay (Tap)

    2x Reverb (Gated)

    2x Vocal Effect

    3x Stereo Chorus

    Chorus

    3x Flanger

    Phaser

  • Audio Delay: Adjustable Up to 682 ms
  • Automatic Mic Mixing: Yes
  • Sample Rates:

    96 kHz

    AES3 Output: 44.1 / 48 / 88.2 / 96 kHz

    Stereo Record: 96 kHz

    Stereo Playback: 44.1 / 48 / 96 kHz

    Multitrack Playback/Multitrack Record: 96 kHz

  • Bit Depth:

    Up to 96-Bit

    Stereo Record: 24-Bit

    Stereo Playback: 16 / 24-Bit

    Multitrack Playback, Multitrack Record: 24-Bit

  • Frequency Response: 20 Hz to 20 kHz ±5 dB
  • Max Input Level

    XLR Mic Input: 16 dBu

    1/4″ TRS Line Input: +30 dBu (Pad)

  • Analog Dynamic Range: 110 dB
  • I/O Impedance:

    Mic Input: 1.5 Kilohms

    Line Input: 20 Kilohms

  • Noise Floor: -88 dBu
  • THD+N: Mic/Line Input: 0% at Unity Gain
  • Signal Generator: Sine, White, Pink, Band-Pass Noise
  • Analog Inputs:

    1x XLR Talkback Input

    16x XLR Balanced Mic/Line Input

    4x 1/4″ TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)

  • Analog Outputs:

    12x XLR Balanced Output

    2x 1/4″ TRS Balanced Output

  • Phantom Power: +48 V
  • Digital I/O:

    1x etherCON Input/Output (I/O)

    1x XLR AES3 Output

  • USB I/O:

    1x USB-A 2.0 (External Memory)

    1x USB-C 2.0 (Audio Streaming)

  • USB I/O Capacity: 32x Input / 32x Output
  • Other I/O:

    1x RJ45 Control In/Out (Bi-Directional)

  • Max Multitrack Recording: 32 Tracks
  • Media Support: SD, USB Drive
  • File Format Support: WAV
  • OS Compatibility:

    Computer: Windows 10 or Later / macOS 10.14 to 11

    Mobile: Android/iOS

  • Mobile Device Compatibility:

    Android Smartphone

    Android Tablet

    iPad

    iPhone

  • Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Rack Mountable: Yes
  • Operating Conditions: 32 to 104°F / 0 to 40°C
  • Dimensions: 17.7 x 8.3 x 18.7″ / 45 x 21.1 x 47.5 cm
  • Weight: 22 lb / 10 kg
